Reference 48V LiFePO4 battery modules for telecom backup, commercial energy storage, and modular rack infrastructure. BMS monitoring, communication, and multi-unit parallel options are confirmed against the quoted configuration.
Module Catalog
Browse 48V LiFePO4 modules below or check the specification comparison table for complete mechanical and electrical parameters.
SCIFP48100-3UProduct-family reference image; confirm the exact enclosure and configuration for the quoted model.Energy Storage Systems
A 4.8 kWh 48V LiFePO4 rack module for telecom backup, commercial energy storage, and parallel-expandable infrastructure projects.
Compare all 11 ESS models in the series table below.
Capacity groups
The specification table outlines mechanical dimensions, weight, and maximum charge ratings across the standard 48V ESS module lineup.
Entry and space-constrained telecom / commercial nodes.
Common cabinet deployments and modular backup architecture.
Higher runtime sites and commercial storage nodes.
| Module | Voltage | Capacity | Weight | Dimensions (W×D×H) | Max charge | Details |
|---|---|---|---|---|---|---|
| SCIFP4810 | 48V | 10Ah | 9.6 kg | 440 × 300 × 44 mm | 10A | View |
| SCIFP4820 | 48V | 20Ah | 15.5 kg | 440 × 350 × 89 mm | 20A | View |
| SCIFP4830 | 48V | 30Ah | 19.5 kg | 440 × 400 × 89 mm | 30A | View |
| SCIFP4840 | 48V | 40Ah | 21.8 kg | 440 × 300 × 133 mm | 40A | View |
| SCIFP4850-2U | 48V | 50Ah | 26.0 kg | 440 × 400 × 89 mm | 50A | View |
| SCIFP4850-3U | 48V | 50Ah | 27.2 kg | 440 × 400 × 133 mm | 50A | View |
| SCIFP4880 | 48V | 80Ah | 36.1 kg | 440 × 350 × 178 mm | 80A | View |
| SCIFP48100-3U | 48V | 100Ah | 40.6 kg | 440 × 440 × 133 mm | 100A | View |
| SCIFP48100-5U | 48V | 100Ah | 43.8 kg | 440 × 350 × 222 mm | 100A | View |
| SCIFP48150 | 48V | 150Ah | 73.7 kg | 440 × 500 × 222 mm | 100A | View |
| SCIFP48170 | 48V | 170Ah | 68.7 kg | 440 × 500 × 222 mm | 100A | View |
Telecom plants, access terminals, BTS/BSC backup, and commercial storage nodes.
Parallel expansion, rectifier matching, and SNMP/RS485 mapping require project review.
Ask for datasheet, communication protocol, and configuration-specific compliance files.
Preparing an RFQ? Use the 48V ESS RFQ checklist to package load, cabinet, communication, and documentation inputs.
Enclosure examples

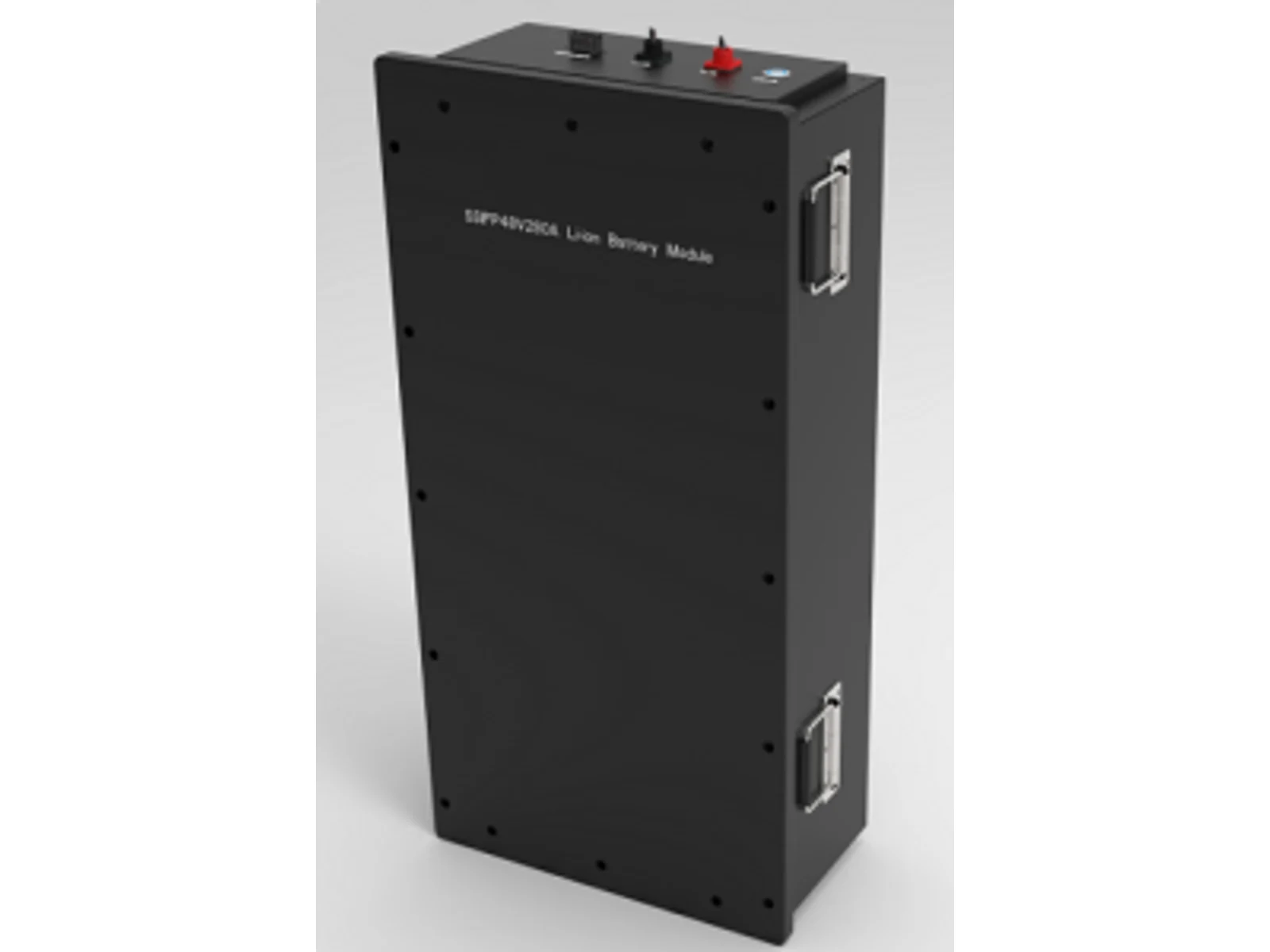

Reference images show additional power-bank and floor-standing formats for cabinet, footprint, and installation discussions.
Use these examples to compare enclosure approaches. Model identity, capacity, interfaces, and availability are confirmed for the quoted project configuration.
Share your target voltage, load profile, environment, volume, and schedule. Our team will follow up with the next technical and commercial questions.
